SUHR BELLA AMPLIFIERS



Bella is a portable, American voiced, hand-wired, all-tube amplifier, designed to be the ideal grab-n-go amplifier and the ultimate platform for your pedalboard. Bella’s simple and easy to use controls (including Boost and 3-position Bright switch) make it a snap to tailor the amp to your favorite boost, overdrive, fuzz and distortion pedals; while the effects loop is the ideal place for all of your chorus, flange, delay, and reverb pedals.

Bella is powered by a duet of 6L6GC power tubes that deliver either 22 or 44 Watts of Class A/B power and is available in a head or combo format, with or without reverb.

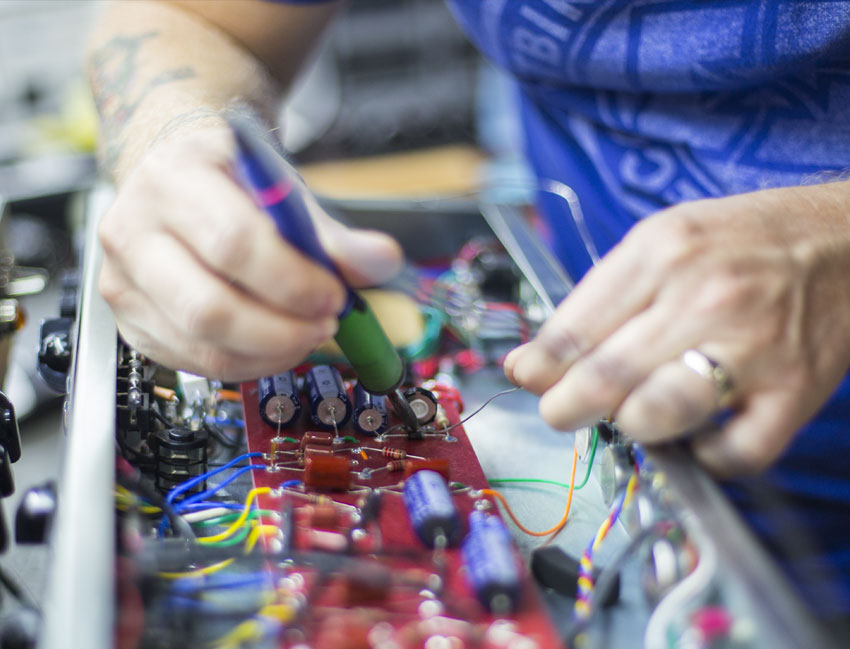

100% HANDWIRED

Each Bella amplifier is meticulously hand wired, assembled, and tested in our Lake Elsinore, CA factory.

100% HANDWIRED

Each Bella amplifier is meticulously hand wired, assembled, and tested in our Lake Elsinore, CA factory.

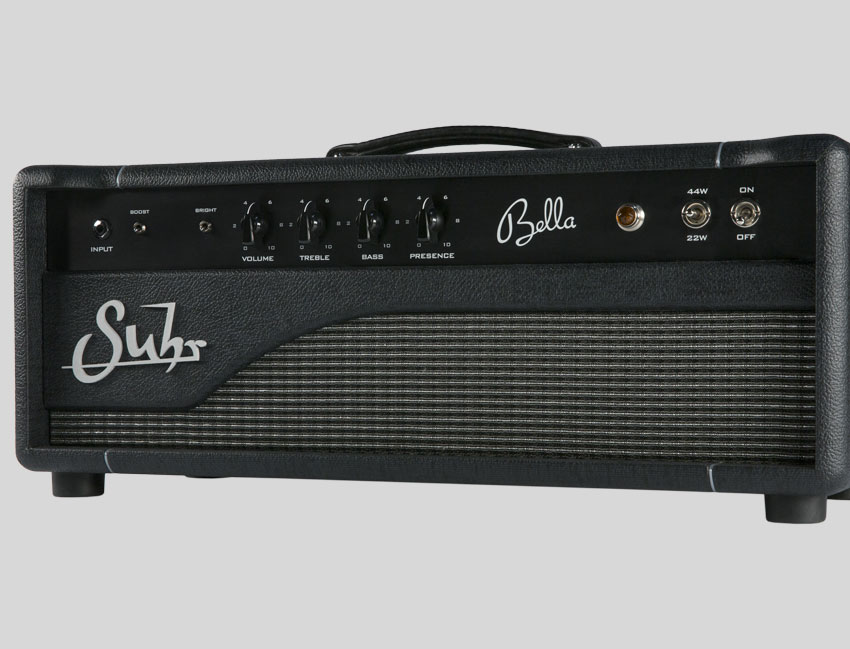

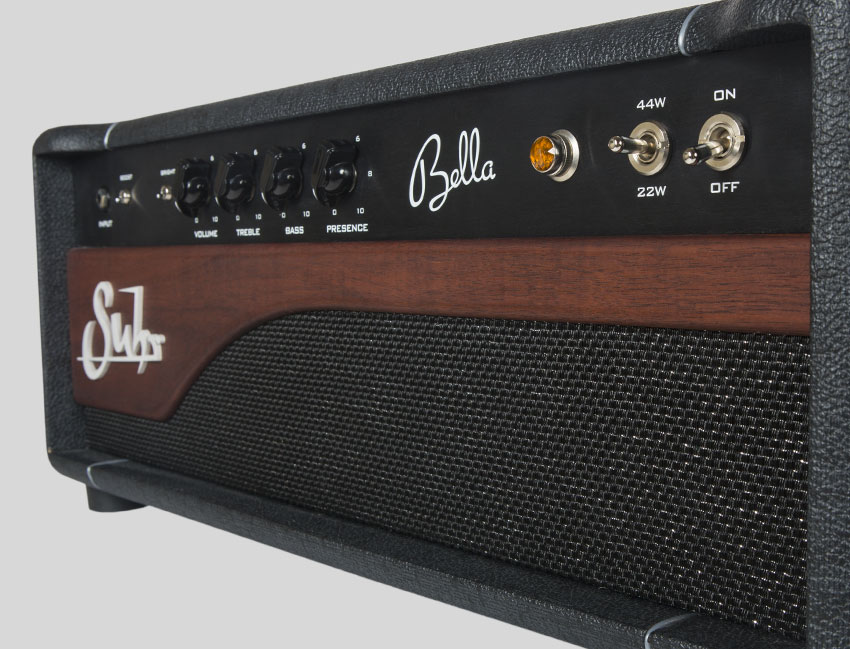

SELECTABLE WATTAGE

The Bella can be selected to run at either 44 or 22 watts. Choose 44 watts when you need the boldest tone with the most clean headroom. Choose 22 watts when you want the amp to break up sooner and at lower volumes.

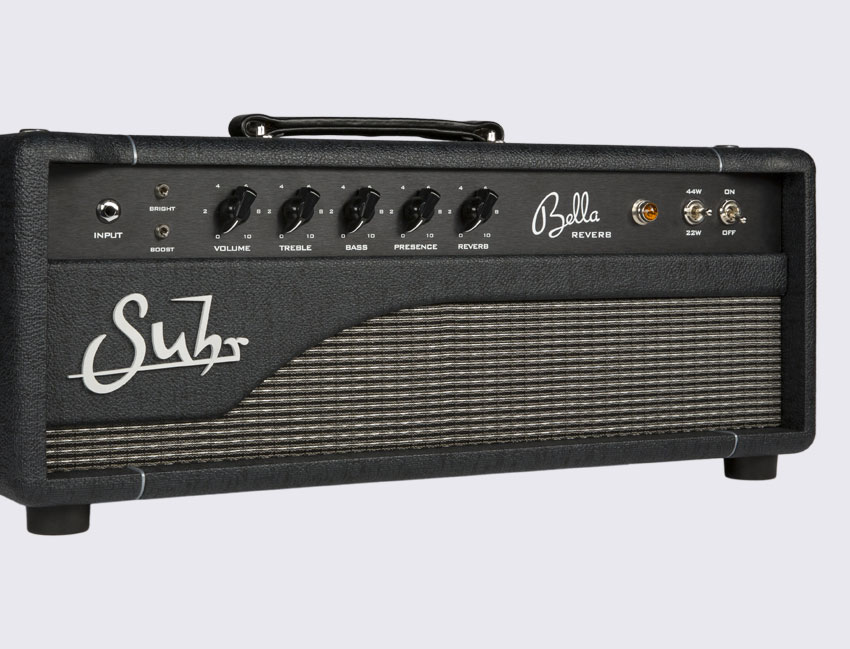

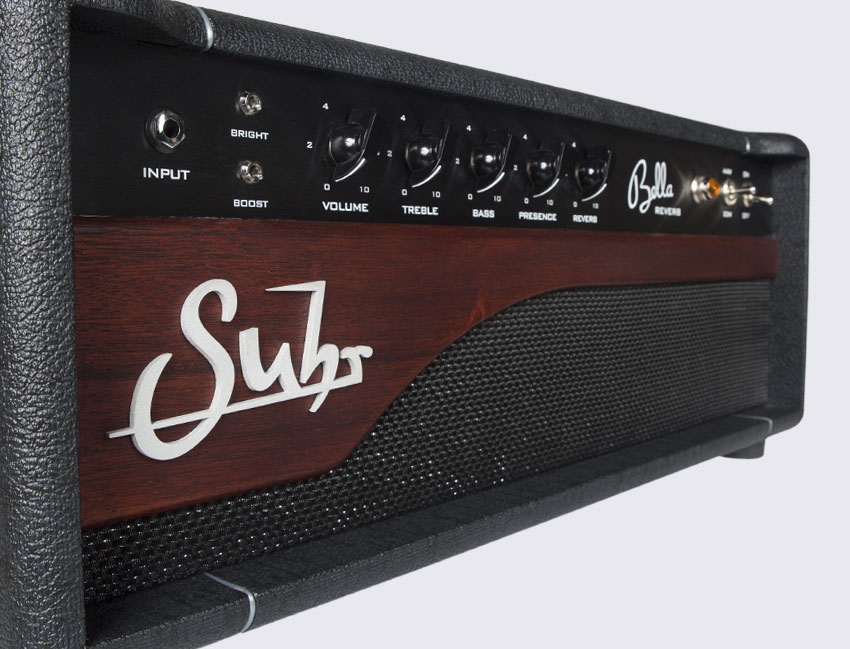

SWITCHABLE BOOST & BRIGHT

TWO POSITION BOOST: This 2-position switch varies Bella’s input gain stage via the front panel or the footswitch jack located on the back of the amplifier. Engaging the boost provides +6dB of boost at the first gain stage.

THREE POSITION BRIGHT: The bright switch has three selections available.

  • Bypass
  • In the middle position: Bella introduces a modest amount of brightness that brings out the guitar’s upper frequencies.
  • This position naturally opens up the top-end, allowing all of your guitar’s higher frequencies and chime to shine through.

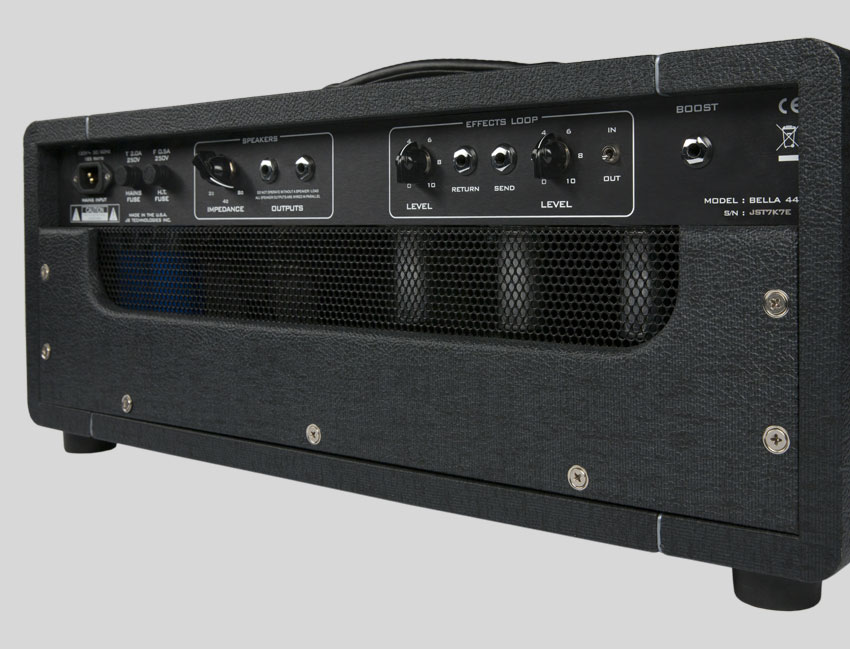

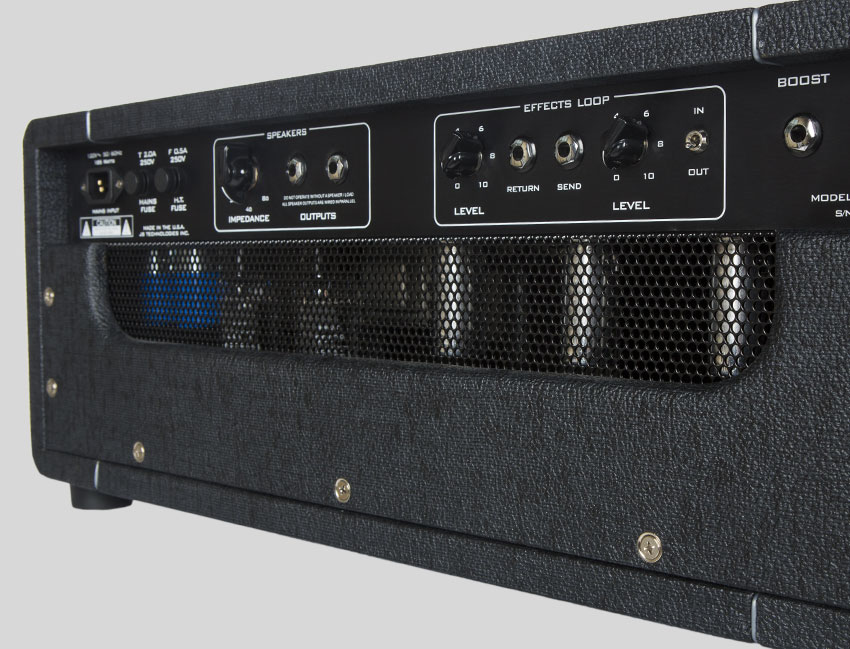

TRANSPARENT EFFECTS LOOP

Bella is equipped with a full-featured, all-tube series effects loop which performs equally well with pedals and line-level rack gear via the loop’s independent send and return controls. The effects loop was designed to be extremely clean and transparent, making it the ultimate effects platform.

YOUR PEDALS HAVE NEVER SOUNDED SO GOOD

Bella has been specially designed with your pedals in mind and it’s the ultimate, clean, pedal platform. It responds to virtually any pedal in a tone-full way and even the bright switch is friendly with most overdrives and distortions.

YOUR PEDALS HAVE NEVER SOUNDED SO GOOD

Bella has been specially designed with your pedals in mind and it’s the ultimate, clean, pedal platform. It responds to virtually any pedal in a tone-full way and even the bright switch is friendly with most overdrives and distortions.

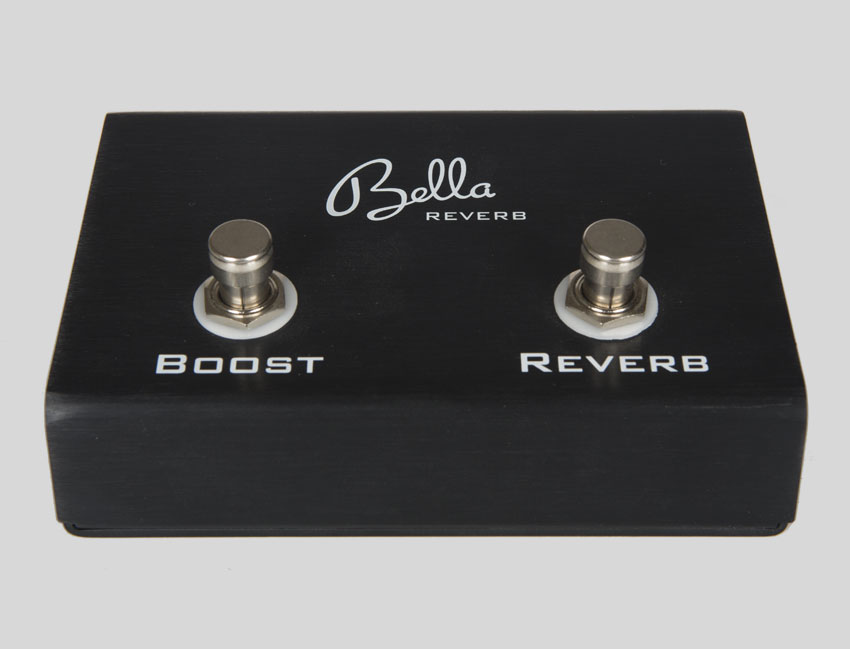

VERSATILITY ON THE FLY

The standard Bella has a single button foot switch available for the selectable boost. The Bella Reverb has a two button foot switch available to remotely switch the boost and reverb circuit.

TUBE DRIVEN SPRING REVERB

Available on select models

The optional reverb circuit was painstakingly designed to offer players the ultimate reverb experience without coloring or altering the sound of Bella or your instrument’s natural tone.

AVAILABLE CONFIGURATIONS

The Suhr Bella amplifier is available in the following four configurations:

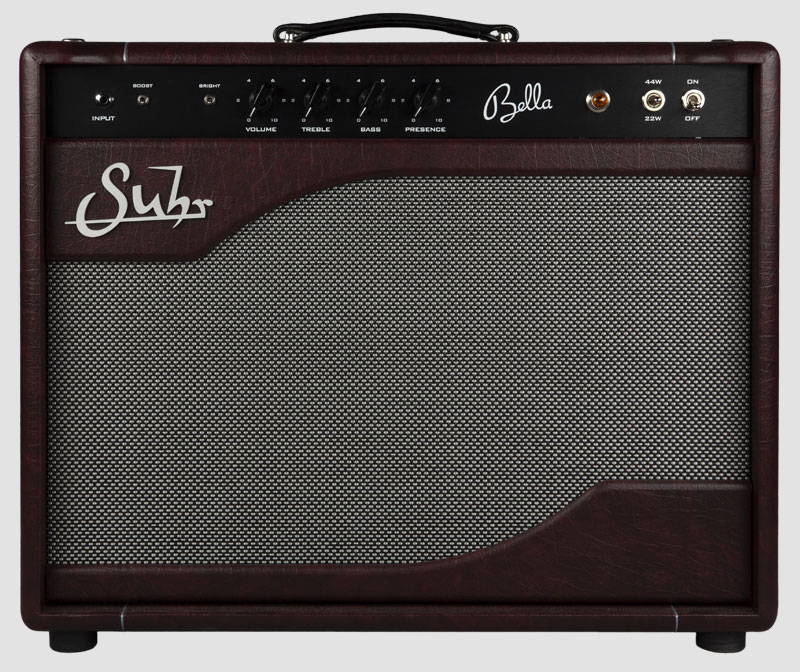

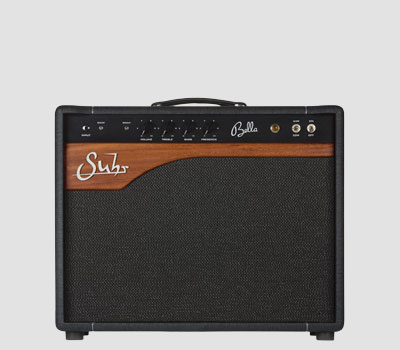

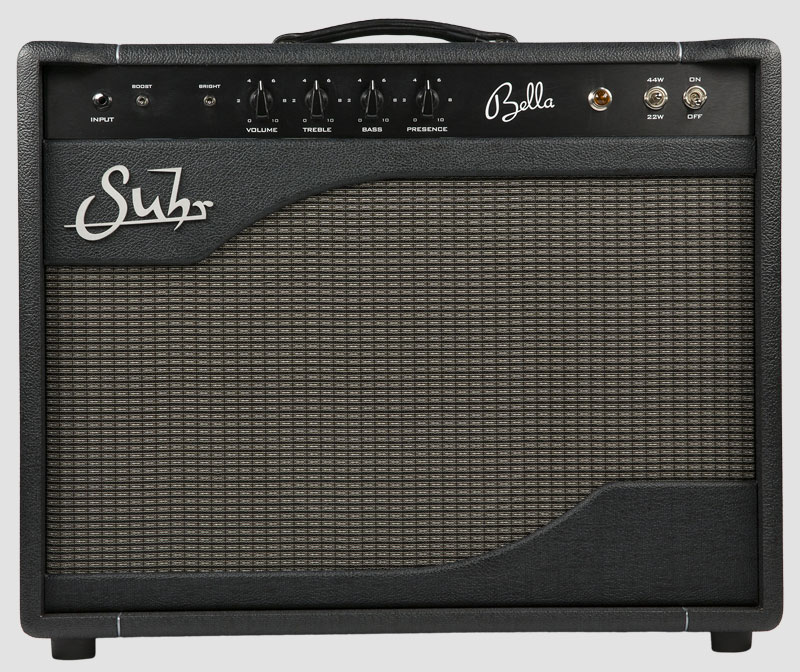

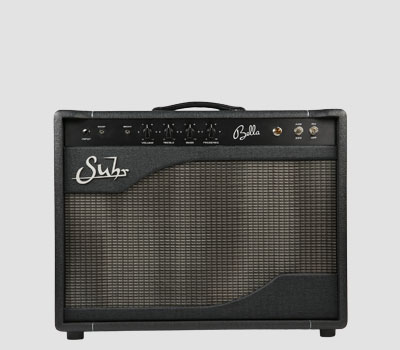

Bella 1x12 Combo

Loaded with Celestion V-Type speaker.

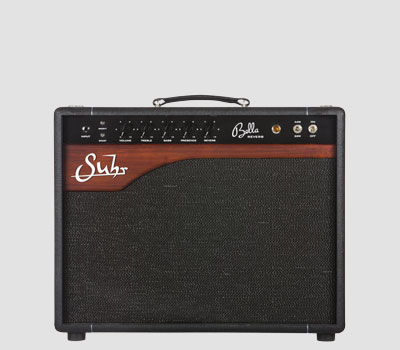

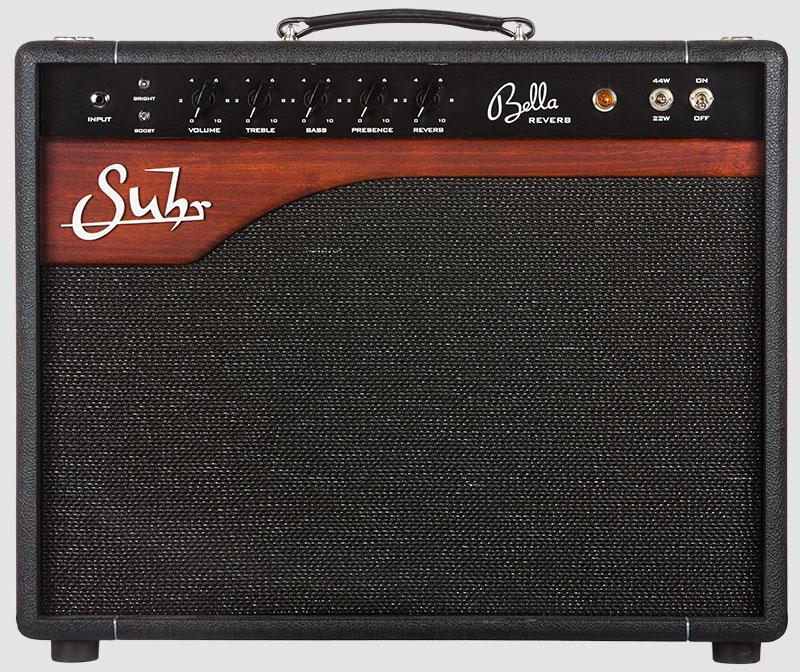

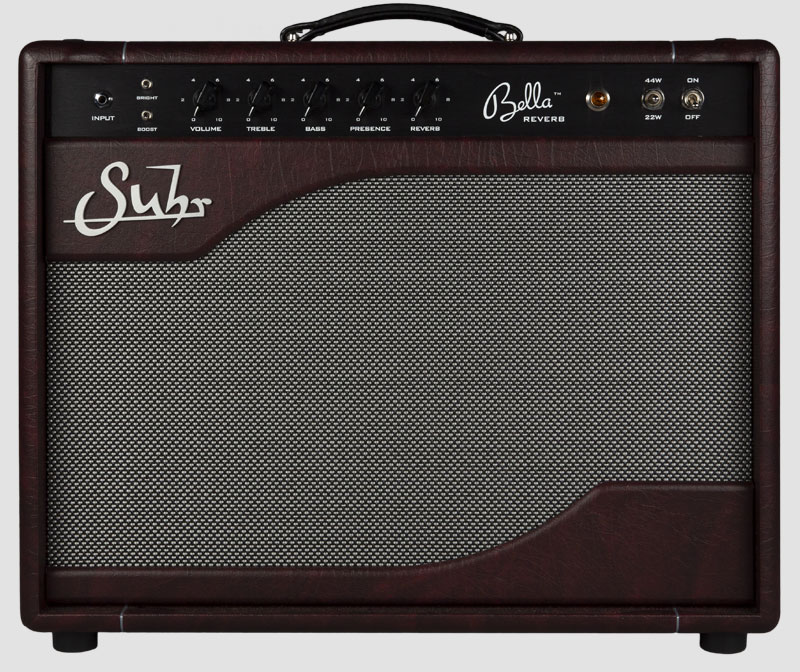

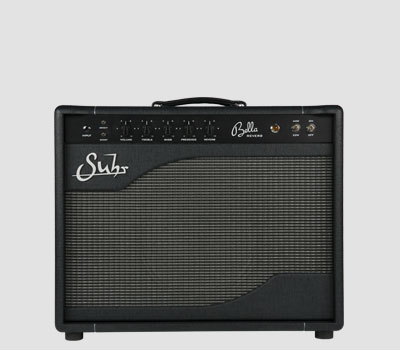

Bella Reverb 1x12 Combo

Loaded with Celestion V-Type speaker.

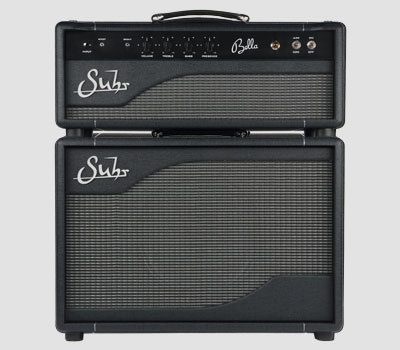

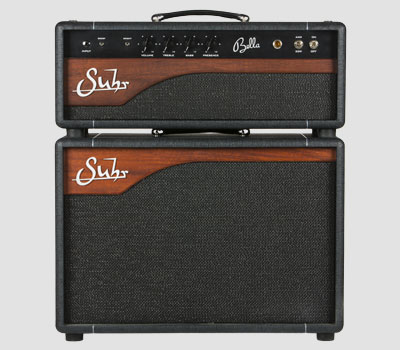

Bella Head

Speaker cabinet sold separately.

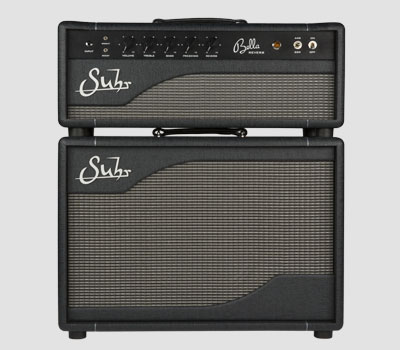

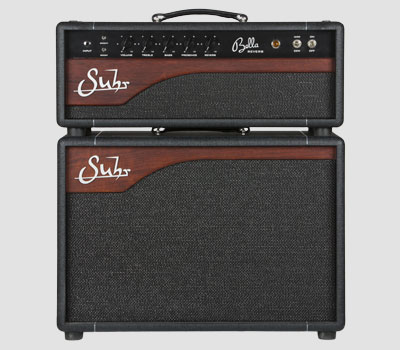

Bella Reverb Head

Speaker cabinet sold separately.

BELLA WITH SLAP BACK DELAY

The Bella is equally at home with line level rack effects, or instrument level pedal effects.

ANDY WOOD PERFORMS LIVE WITH THE BELLA

As part of Andy’s live rig, he runs his pedal board stereo into two Bella amplifiers. Listen to him perform “A Lie” live at the 2016 Suhr factory NAMM event.

BELLA REVERB VIDEO

Even with today’s modern technology, there is still nothing quite like the rich, lush character of a spring reverb.

SPECIFICATIONS:

Street Price:$1,995
SKU:A-BEL-C
Output:Switchable 44/22 Watts RMS
Preamp Tubes:3x 12AX7
Power Tubes:2x 6L6GC
Reverb:No
Effects Loop:Tube driven, buffered, with independent send and return levels.
Speaker:Celestion V-Type (60 Watts)
Front Panel:Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, and Presence, Standby/Wattage Selector Switch, and On/Off Power Switch
Back Panel:Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack.
Dimensions:24” (W) x 9.90” (D) x 19.50” (H)
Weight:51lbs
Street Price:$1,895
SKU:A-BEL-H
Output:Switchable 44/22 Watts RMS
Preamp Tubes:3x 12AX7
Power Tubes:2x 6L6GC
Reverb:No
Effects Loop:Tube driven, buffered, with independent send and return levels.
Speaker:Sold Seperately
Front Panel:Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, and Presence, Standby/Wattage Selector Switch, and On/Off Power Switch
Back Panel:Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack.
Dimensions:24” (W) x 9.90” (D) x 10.4” (H)
Weight:35lbs
Street Price:$2,295
SKU:A-BEL-RC
Output:Switchable 44/22 Watts RMS
Preamp Tubes:3x 12AX7
Power Tubes:2x 6L6GC
Reverb:Tube driven spring reverb
Effects Loop:Tube driven, buffered, with independent send and return levels.
Speaker:Celestion V-Type (60 Watts)
Front Panel:Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, Presence, Reverb, Standby/Wattage Selector Switch, and On/Off Power Switch
Back Panel:Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack.
Dimensions:24” (W) x 9.90” (D) x 19.50” (H)
Weight:51lbs
Street Price:$2,195
SKU:A-BEL-RH
Output:Switchable 44/22 Watts RMS
Preamp Tubes:3x 12AX7
Power Tubes:2x 6L6GC
Reverb:Tube driven spring reverb
Effects Loop:Tube driven, buffered, with independent send and return levels.
Speaker:Sold Seperately
Front Panel:Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, Presence, Reverb, Standby/Wattage Selector Switch, and On/Off Power Switch
Back Panel:Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack.
Dimensions:24” (W) x 9.90” (D) x 10.4” (H)
Weight:35lbs

USER GUIDE

View Or Download The User Guide
