SUHR SCOTT HENDERSON SIGNATURE CLASSIC
John Suhr has been building highly modified Classic S guitars for legendary award winning Jazz and Blues guitarist Scott Henderson since 1991. When John started Suhr Guitars twenty years ago, Scott was his first endorser. After building a number of iterations over the years, John and Scott have honed Scott’s particular guitar specs to what they are today and now we are making Scott’s Signature guitar available to everyone.
IMPECCABLE QUALITY, LEGENDARY PERFORMANCE

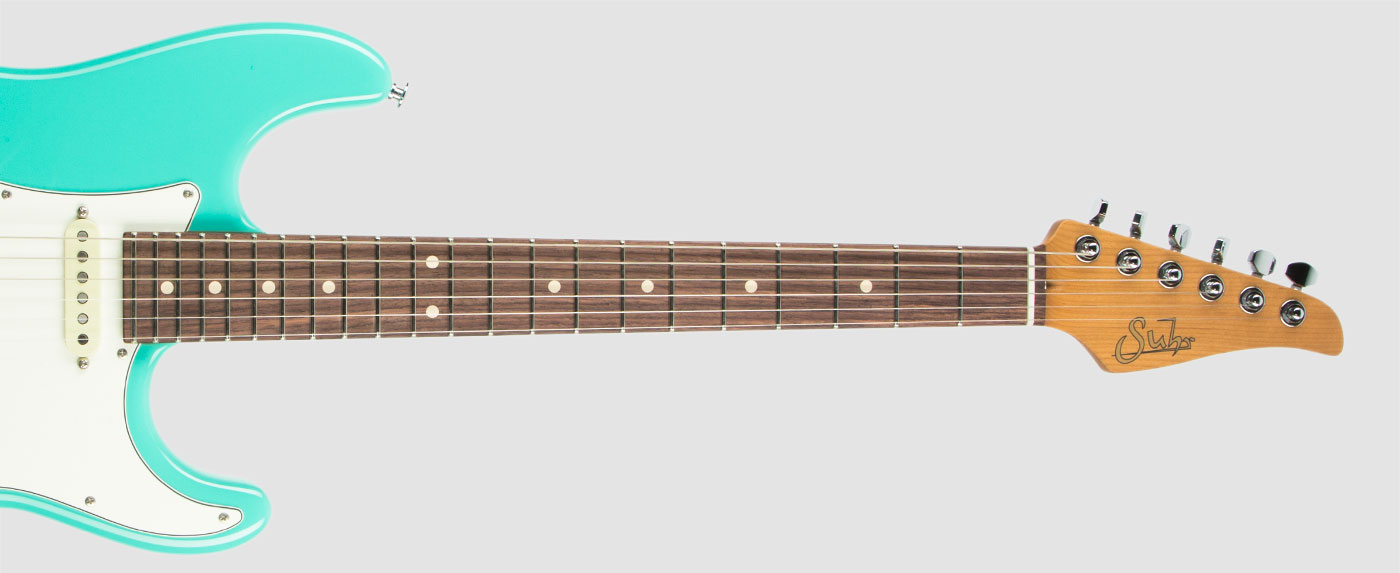

The Scott Henderson Signature Classic features a Roasted Maple neck and Indian Rosewood fingerboard. The neck is finished with our satin acrylic urethane, which provides the smooth feel of natural wood as well as protection from moisture.
D SHAPE NECK (.800″-.880″)
Scott needs a neck that is equally at home with both chords and solo lines. His favorite Suhr neck profile is the D shape with a straight 16″ radius.
JUMBO NICKEL (.057″ x .110″)
Scott’s fret of choice is the Jumbo Nickel. This tall and wide fretwire makes for easy string bending and comfortable sliding. Every Suhr receives a PLEK fret dress, ensuring the best possible string action, playability and intonation.
The contoured heel allows for easier access to the upper register. For optimum tone and stability, the neck joint must not be too tight or too loose, therefore all of our neck pockets are precisely fitted by hand, by expert craftsmen.

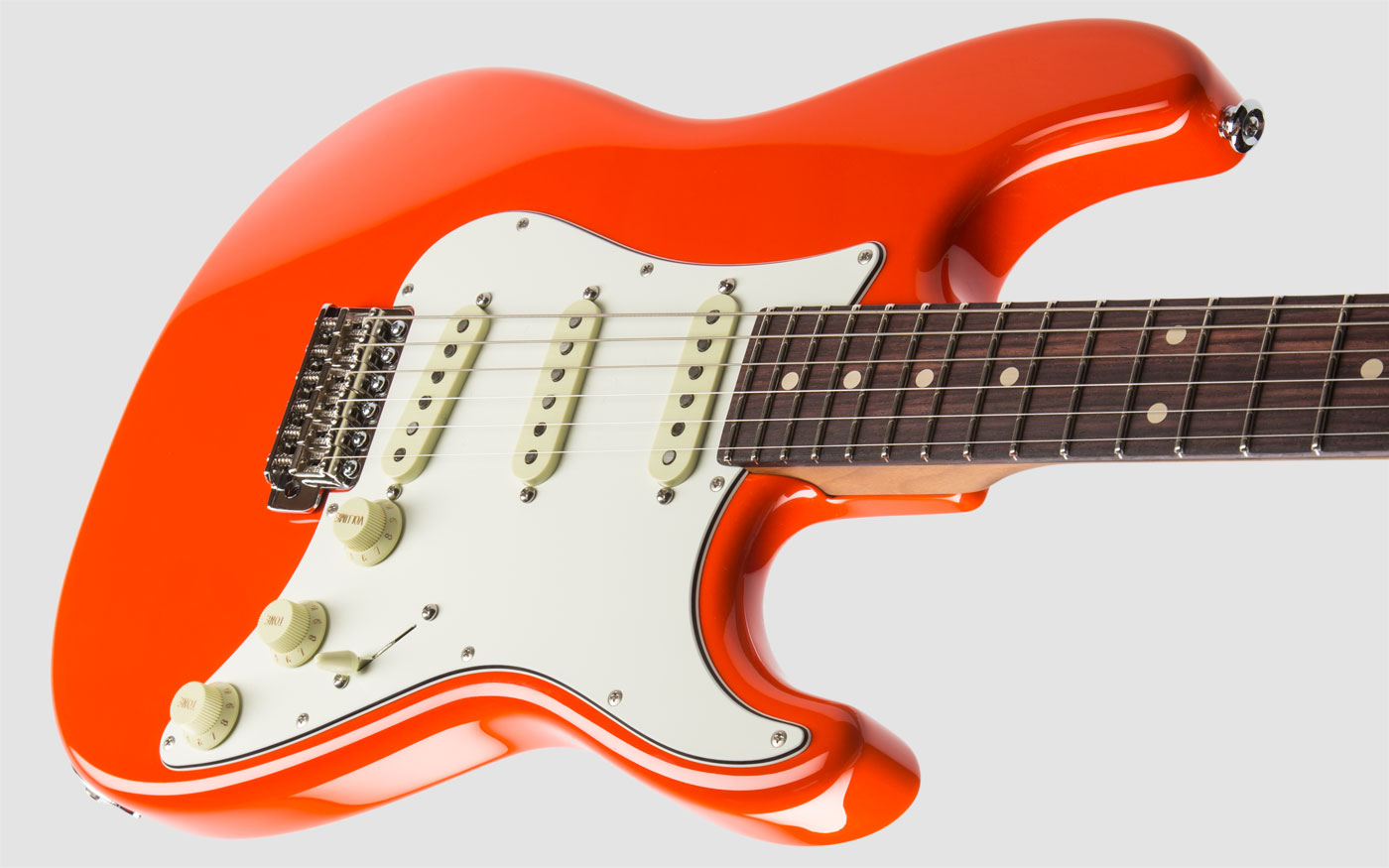

CLASSIC BODY SHAPE
This is the standard vintage shape that many of us grew up with and has the addition of a contoured heel where the neck bolts on for easy access to all the frets.
LIGHTWEIGHT ALDER BODY
Body weight is important to Scott, so we take great care to procure Alder that will produce a guitar that is close to the weight of Scott’s actual instruments.
Our finishing process provides an unparalleled combination of protection, beauty, and tone. Great care is taken to ensure that the thinnest possible layers of finish are applied. This allows the wood to resonate freely while still providing ample protection.
The SSCII is our proprietary silent single coil system. The SSCII is installed inside the body of the guitar and works with traditional single coil pickups. It reduces 60 cycle hum and has no impact on tone, no batteries to change – just transparent noise reduction.

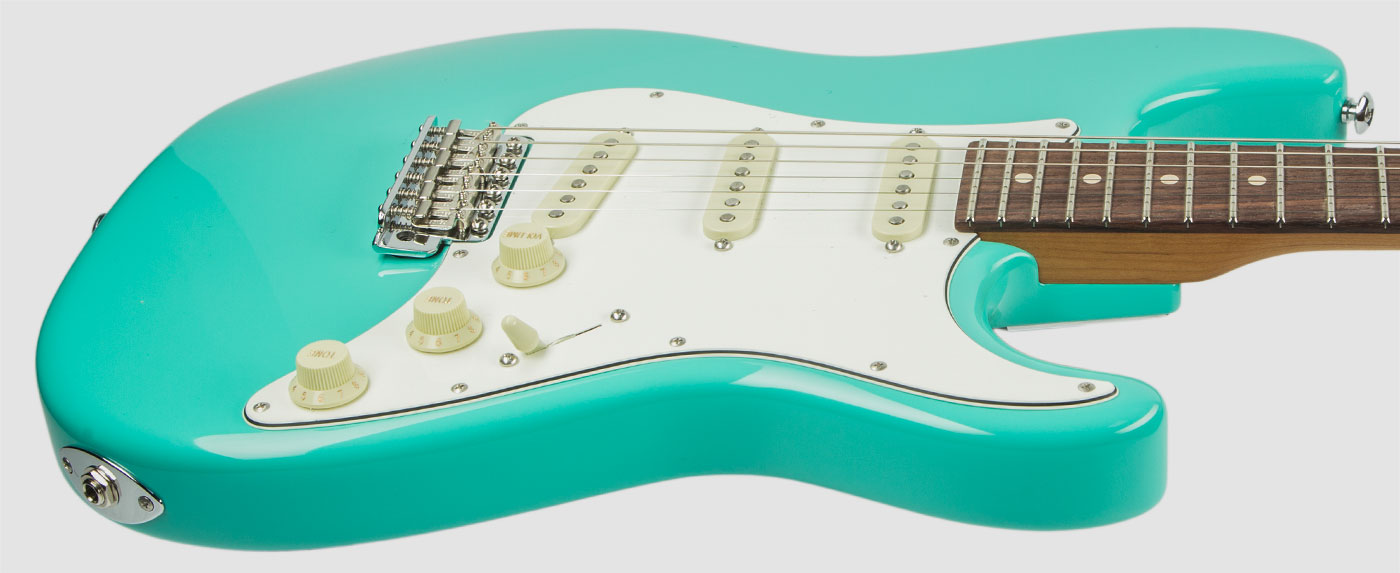

HARDWARE & ELECTRONICS
A highly modified Fender® bridge and unique electronics configuration are at the heart of Scott Henderson’s signature Suhr. Superb tuning stability, vintage tones, and incredible tremolo range come together to create the ultimate blend of vintage sound and modern refinement.
Hardware & Electronic Features
MODIFIED FENDER® BRIDGE
Every detail is here, from the thicker and shorter steel tremolo arm, to painstakingly drilling the six mounting screw holes bigger, and installing the mounting screws in a way that makes the bridge stay exceptionally in tune.
CUSTOM STEEL BLOCK
Regarding his steel block, Scott says, “We meticulously remove all of the paint from the steel block, making the guitar sound much clearer. No paint was ever used on the blocks of vintage guitars.”
INCREASED TREMOLO RANGE
The bridge is angled off the body in order to allow for a major third pull up on the G string. Wood inside the tremolo cavity is manually removed to increase the downward range of the bar.
ML STANDARD PICKUPS
The ML Standard single-coil pickup is overwound for more output and sustain and features our proprietary modified staggered pole piece design to provide an even magnetic field. All Scott Henderson models feature three equal output ML Standard pickups for tonal consistency when switching from one pickup to another.
Equipped with staggered Suhr Locking Tuners, which provide an 18:1 gear ratio, improved tuning stability, and no need for a traditional string tree.
Every Henderson model has Scott’s signature laser engraved on the back of the headstock.
|Body Shape:||Classic S|
|Body Wood:||Lightweight Alder|
|Neck Wood:||Roasted Maple|
|Fingerboard Wood:||Indian Rosewood|
|Neck Back Shape:||D Shape .800"-.880"|
|Frets:||Jumbo Nickel (.057"x.110")|
|Headstock:||Laser Engraved Scott Henderson Signature|
|Bridge Pickup:||ML Standard (not hot) - Aged Green|
|Middle Pickup:||ML Standard - Aged Green|
|Neck Pickup:||ML Standard - Aged Green|
|Tuning Machines:||Suhr Locking|
|Bridge:||Modified Fender® Six Screw Bridge (includes custom made steel block and shortened steel tremolo arm)|
|Tremolo Cavity Cover:||No Cavity Cover
No Screw Holes
|Tremolo Range:||Tremolo is set to pull up a major third on the G string and approximately push down one octave on the A string. Wood is removed inside the tremolo cavity to allow for increased range.|
