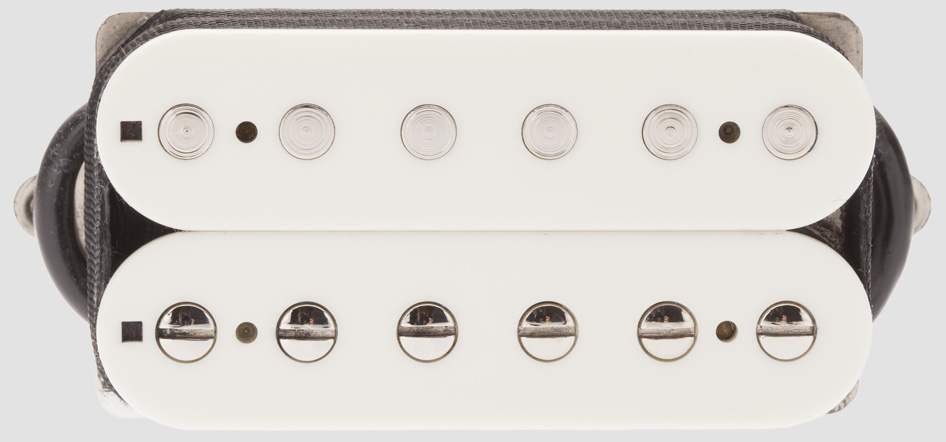

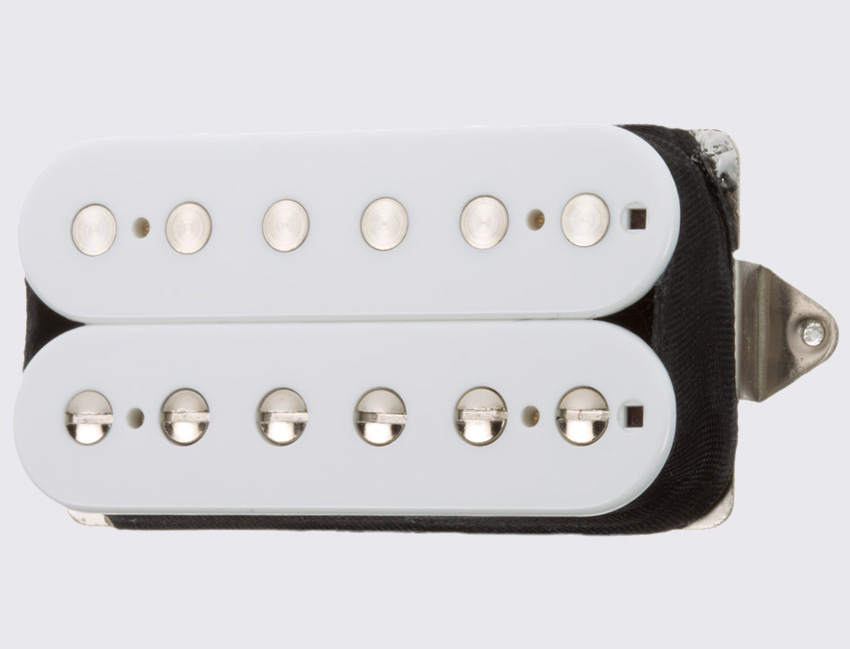

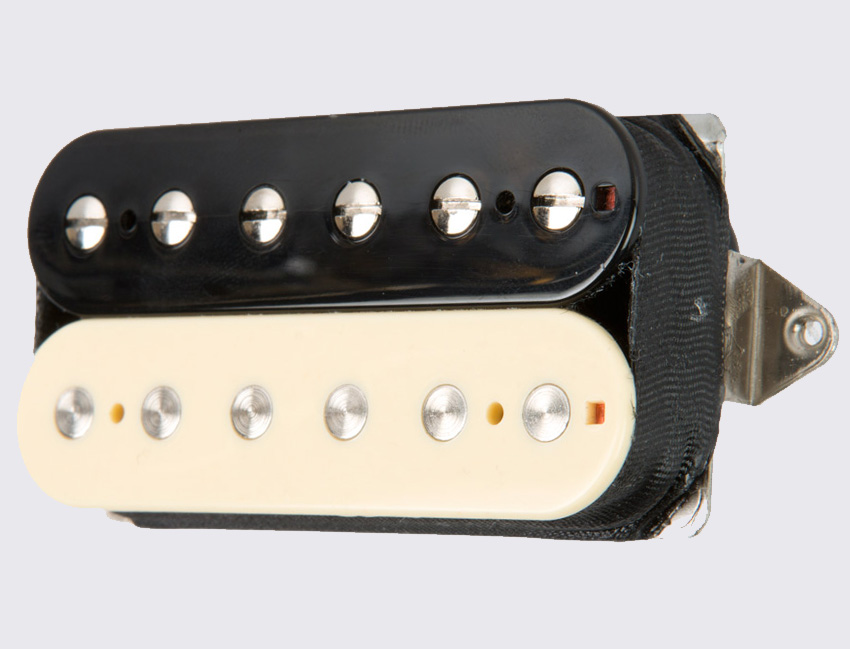

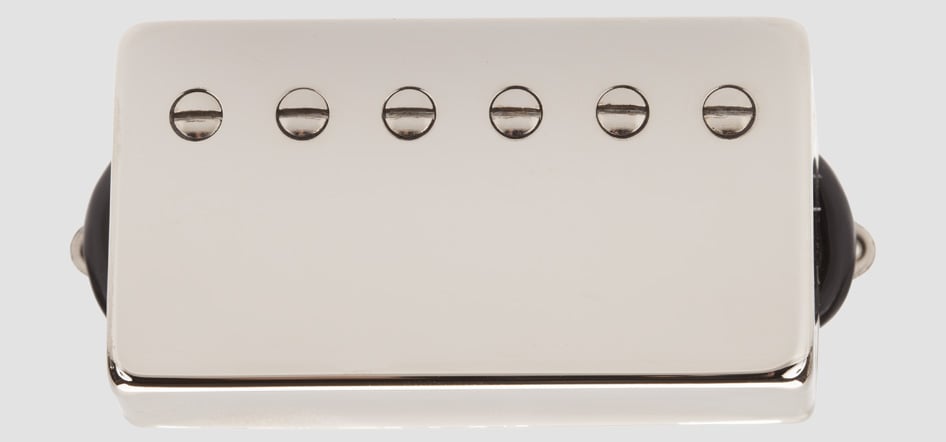

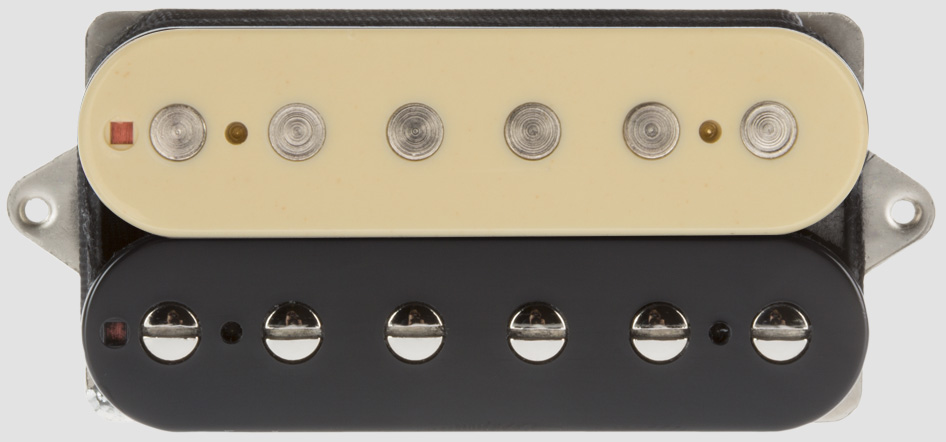

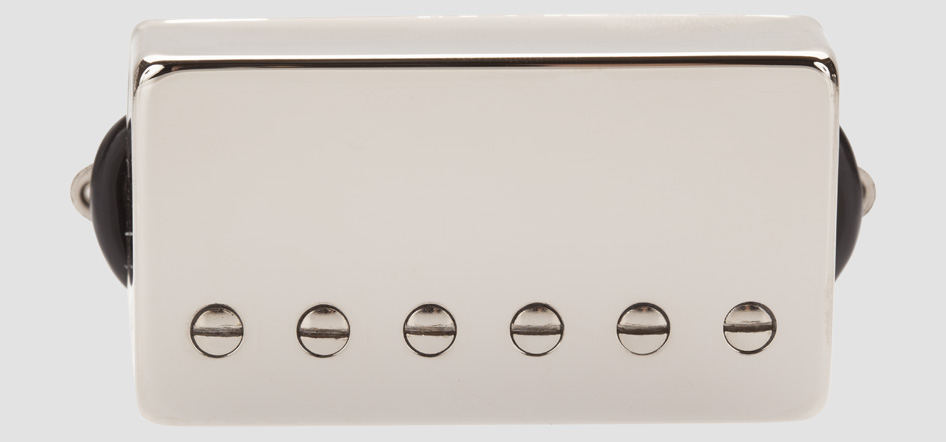

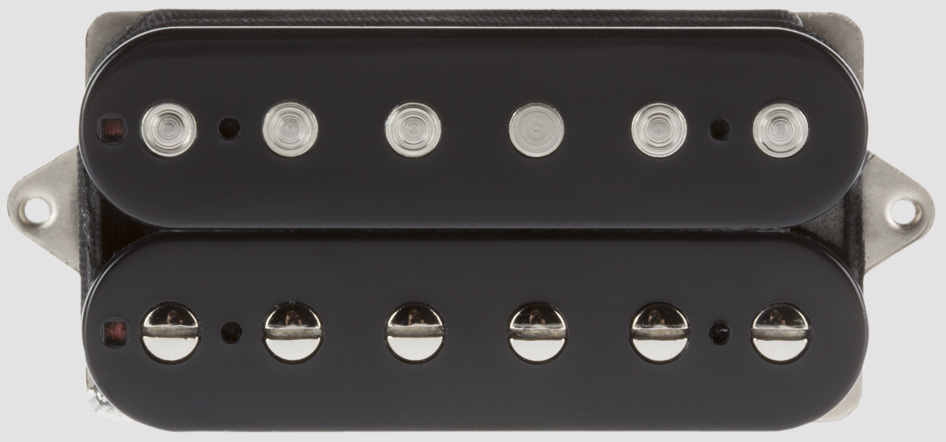

SUHR SS HUMBUCKERS

Our most popular humbuckers. The SS, or single screw, series of pickups feature the classic, authentic combination of a single row of adjustable screw pole pieces, and a row of slug pole pieces. These pickups offer the warmth of a vintage humbucker with increased clarity and definition and range in output from vintage to hot.

SSV – BRIDGE AND NECK



The SSV has a broad sonic aperture with very little compression, making for a dynamic, vintage output humbucker. The SSV Neck is a versatile pickup that combines the warmth of a vintage humbucker with increased clarity and definition. The SSV Bridge is similar to the SSV neck in tone, but wound hotter for more output, increased sustain and a sweet midrange response.

SSV+ BRIDGE



The SSV+ is like a great vintage humbucker with an attitude. Brighter than the SSV, it provides the best attributes of highly sought-after vintage PAF-style pickups with the extra kick needed to cut through a dense mix, the SSV+ is superb for covering a wide range of genres.

SSH BRIDGE



The SSH bridges the gap between vintage and hot, providing strong output, pronounced mids that will push the front end of a tube amp, and sweet open-sounding vintage-style tonality.

SSH+ BRIDGE



A true high output humbucker, the SSH+ covers a broad musical base with musicality, punch, authority, and tone. The pickup exhibits excellent harmonic content, lots of midrange and a focused low end. Well suited for classic rock or metal.

AVAILABLE CONFIGURATIONS

SSV BRIDGE



Spacing: 50mm or 53mm

Magnet: Alnico V

DC Resistance: ~ 9KΩ

Hook Up Wire: 4-Conductor

Colors: Black, Parchment, White, Zebra and Reverse Zebra

Covers: Nickel and Gold

SSV+ BRIDGE



Spacing: 50mm or 53mm

Magnet: Alnico V

DC Resistance: ~ 10KΩ

Hook Up Wire: 4-Conductor

Colors: Black, Parchment, White, Zebra and Reverse Zebra

Covers: Nickel and Gold

SSH BRIDGE



Spacing: 50mm of 53mm

Magnet: Alnico V

DC Resistance: ~ 12.8KΩ

Hook Up Wire: 4-Conductor

Colors: Black, Parchment, White, Zebra and Reverse Zebra

Covers: Nickel and Gold

SSH+ BRIDGE



Spacing: 50mm or 53mm

Magnet: Alnico V

DC Resistance: ~ 17KΩ

Hook Up Wire: 4-Conductor

Colors: Black, Parchment, White, Zebra and Reverse Zebra

Covers: Nickel and Gold

SSV NECK



Spacing: 50mm

Magnet: Alnico V

DC Resistance: ~ 8KΩ

Hook Up Wire: 4-Conductor

Colors: Black, Parchment, White, Zebra and Reverse Zebra

Covers: Nickel and Gold
