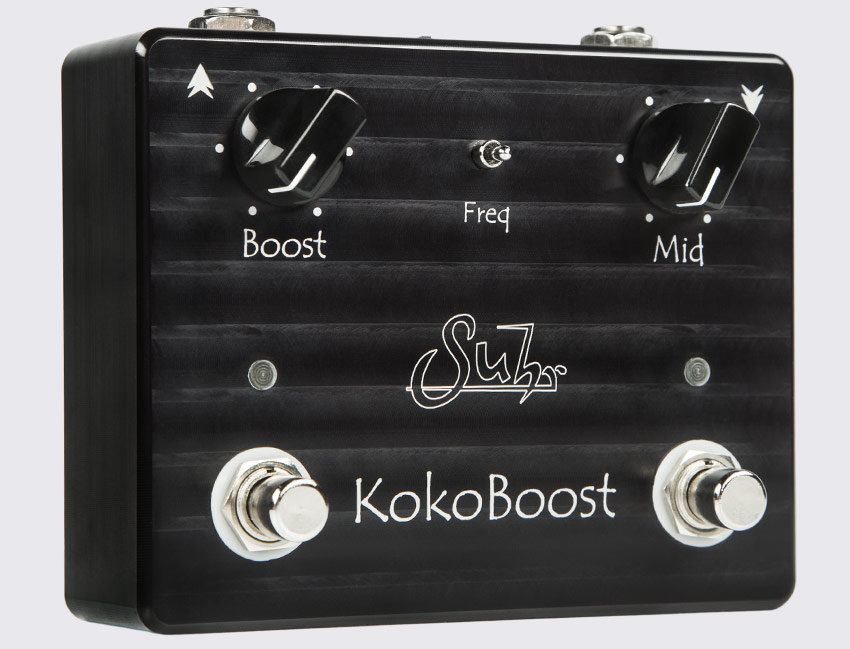

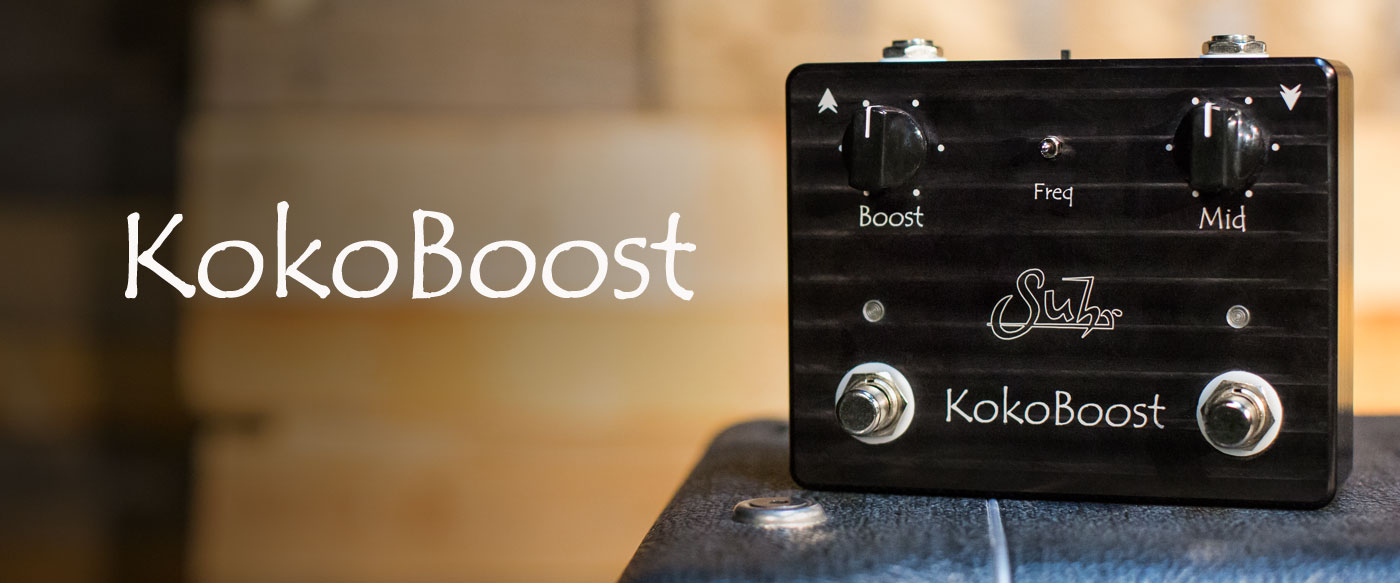

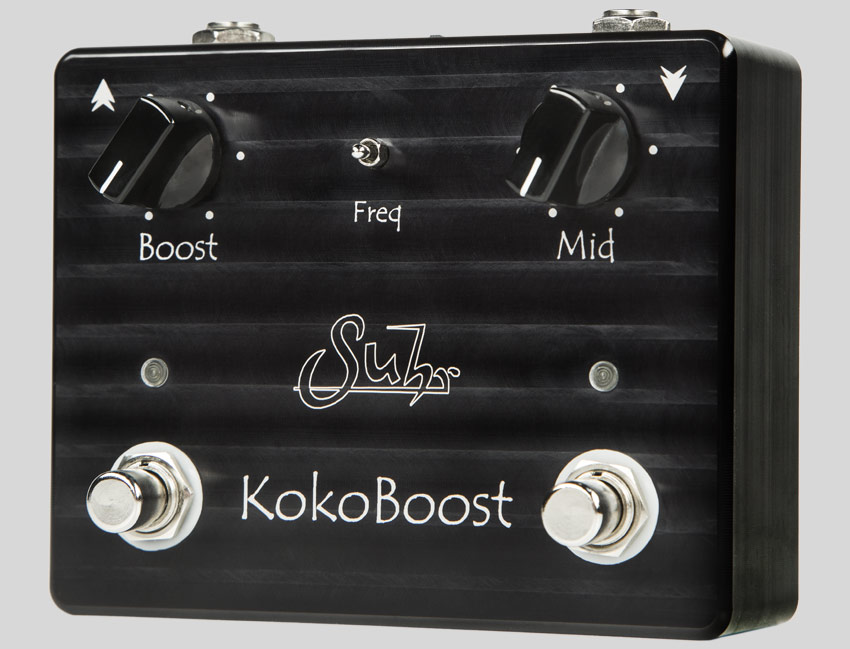

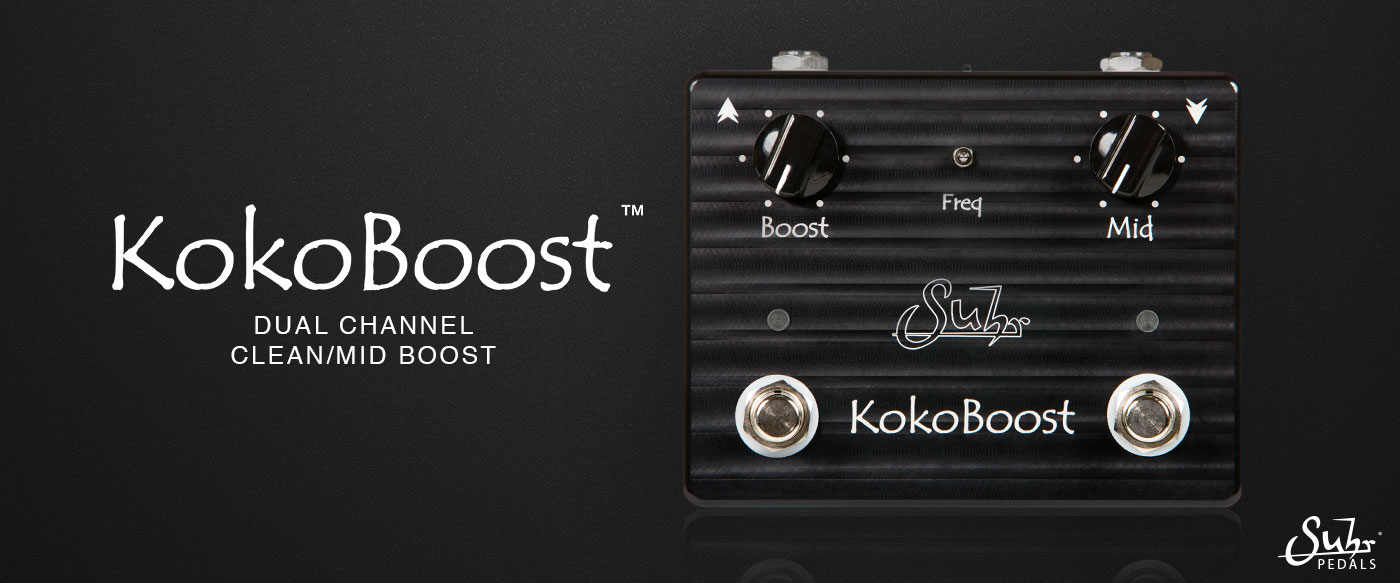

SUHR KOKO BOOST PEDAL

Koko Boost is a unique boost pedal that incorporates both a clean transparent boost and a selectable midrange boost. Koko will expand the range of your tube amplifier and Overdrive / Distortion pedals. Koko Boost features an easy to tweak layout which includes Boost and Mid knobs, plus a Freq (Frequency) select switch.

ONE PEDAL, TWO BOOSTS

The two foot-switches allow instant access to each boost mode: clean and mid boost.

ONE PEDAL, TWO BOOSTS

The two foot-switches allow instant access to each boost mode: clean and mid boost.

CONTROLS

Boost: Adjusts the overall output of the boost circuit. The Boost control varies from 0dB (unity gain) to +20dB of gain. Turning this control to higher settings will efficiently push the front-end of your amplifier and create a broad range of natural overdriven tones.

Mid: Adjusts the output of the selected Mid frequency (via the Freq switch) that is added to the clean boosted signal.

FREQUENCY SWITCH

The three position frequency switch is active when the mid boost is engaged, and allows you to choose between three midrange voicings.

  • Left (Mids): Full and Smooth, tuned specifically to bring out your guitars natural midrange characteristics.
  • Middle (High Mids): Clear and articulate, voiced to cut through a mix for solo playing.
  • Right (Low Mids): Fat and Creamy, excellent for thickening up rhythm and lead tones.

ADVANCED FEATURES

Selectable Bypass Mode: Koko includes a high quality, transparent sounding, buffer. Via an internal switch, you can choose to have Koko operate in true bypass, or buffered bypass modes.

FX Link: The FX Link connector allows the pedal’s switching function to be controlled from an external switch, pedal board, loop switcher, or any other custom interface. FX Link also provides the ability to power up in the On/Off state.

Low Battery Monitor: Koko incorporates a unique battery monitor that alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

SPECIFICATIONS:

Street Price:$250
SKU:03-BST-0003
Input Impedance:1M Ohm
Output Impedance:600 Ohm
Power Connector:9Vdc regulated, center negative, 2.1mm x 5.5mm
Operating Voltage:4V to 18V (nominal 9V)
Maximum Voltage:20Vdc
Reverse Battery Protection:Yes
Over Voltage Protection:Yes
Current Consumption:< 20mA
Estimated Battery Life:37 hours of continuous use
FX Link Connector:1/8" Stereo
FX Link Max Voltage:3.3Vdc
Shield → Tip:Activate Mid Boost
Shield → Ring:Activate Boost
ROHS Compliant:Yes
Dimensions:4.875”(W) x 3.875”(D) x 1.375”(H)
Weight:1lb
